Image on a figure

The pygmt.Figure.image method can be used to read and place an image file in many formats (e.g., png, jpg, eps, pdf) on a figure. We must specify the filename via the imagefile parameter or simply use the filename as the first argument. You can also use a full URL pointing to your desired image. The position parameter allows us to set a reference point on the map for the image.

from pathlib import Path

import pygmt

fig = pygmt.Figure()
fig.basemap(region=[0, 2, 0, 2], projection="X10c", frame=True)

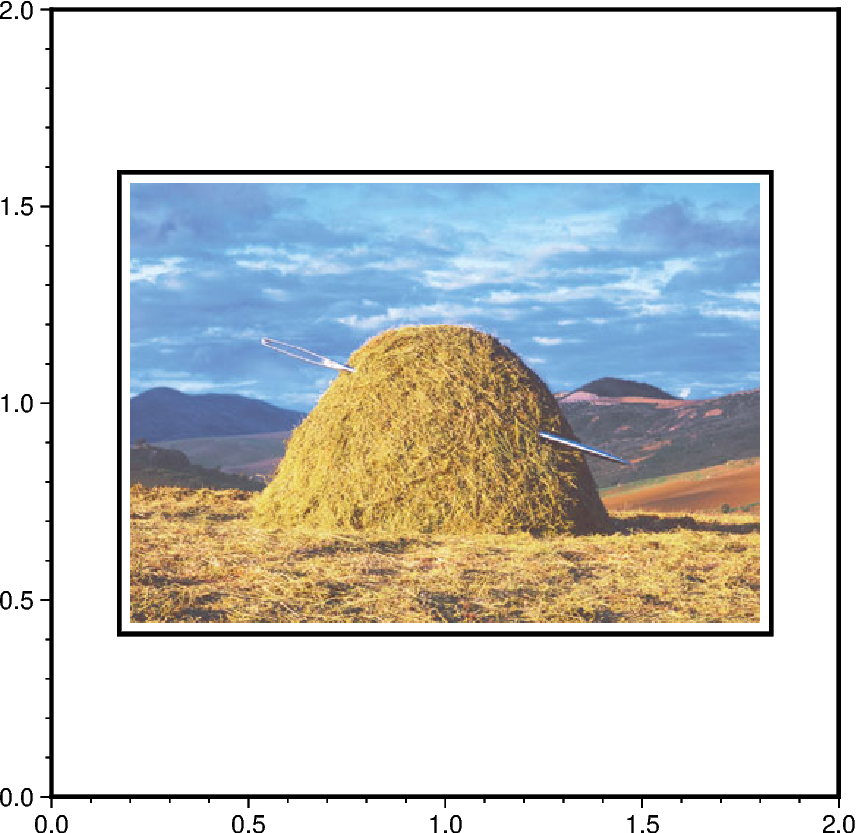

# Place and center ("+jCM") the image "needle.jpg" provided by GMT to the position
# ("+g") 1/1 on the current plot, scale it to a width of 8 centimeters ("+w") and draw
# a rectangular border around it
fig.image(
    imagefile="https://oceania.generic-mapping-tools.org/cache/needle.jpg",
    position="g1/1+w8c+jCM",
    box=True,
)

fig.show()

# Clean up the downloaded image in the current directory
Path("needle.jpg").unlink()

Total running time of the script: (0 minutes 0.849 seconds)
