Note
Go to the end to download the full example code.
Timestamp
The pygmt.Figure.timestamp
method can draw the GMT timestamp logo on the plot.
The timestamp will always be shown relative to the Bottom Left (BL) corner of the plot.
By default, the offset
and justify
parameters are set to ("-54p", "-54p")
(x, y directions) and "BL"
(Bottom Left), respectively.

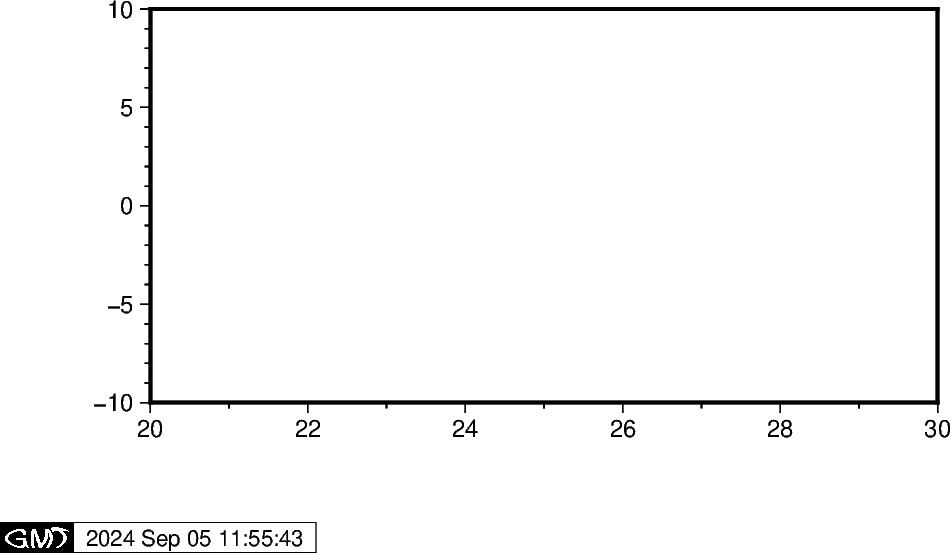

import os
import pygmt
fig = pygmt.Figure()
fig.basemap(region=[20, 30, -10, 10], projection="X10c/5c", frame=True)
fig.timestamp()
fig.show()

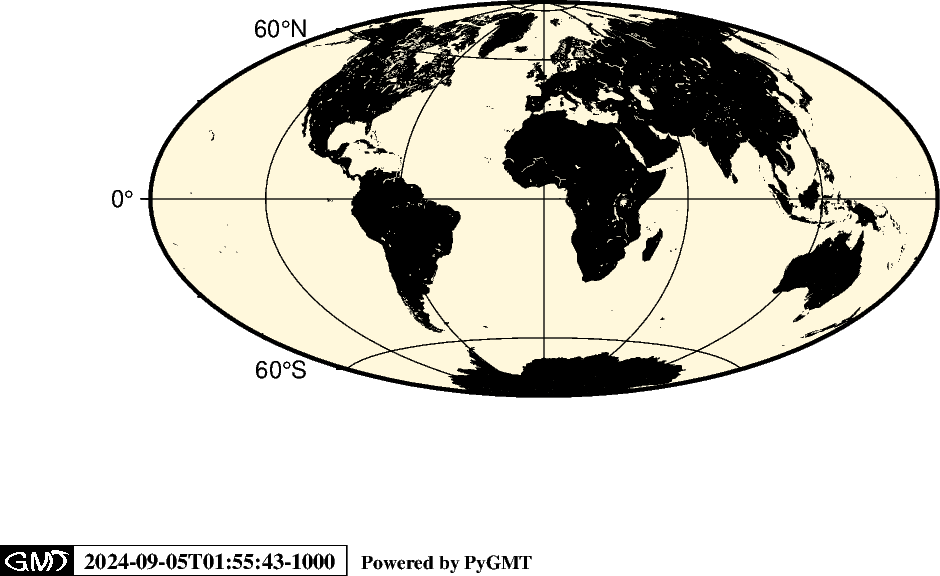

Additionally, a custom label can be added via the label
parameter. The font can be
defined via the font
parameter and the timestamp string format via timefmt
.
os.environ["TZ"] = "Pacific/Honolulu" # optionally set the time zone
fig = pygmt.Figure()
fig.coast(region="d", projection="H10c", land="black", water="cornsilk", frame="afg")
fig.timestamp(
label="Powered by PyGMT",
justify="TL",
font="Times-Bold",
timefmt="%Y-%m-%dT%H:%M:%S%z",
)
fig.show()
Total running time of the script: (0 minutes 0.359 seconds)
