Van der Grinten

The Van der Grinten projection, presented by Alphons J. van der Grinten in 1904, is neither equal-area nor conformal. Central meridian and Equator are straight lines; other meridians are arcs of circles. The scale is true along the Equator only. Its main use is to show the entire world enclosed in a circle.

v[lon0/]scale or V[lon0/]width

The projection is set with v or V. The central meridian is set with the optional lon0, and the figure size is set with scale or width.

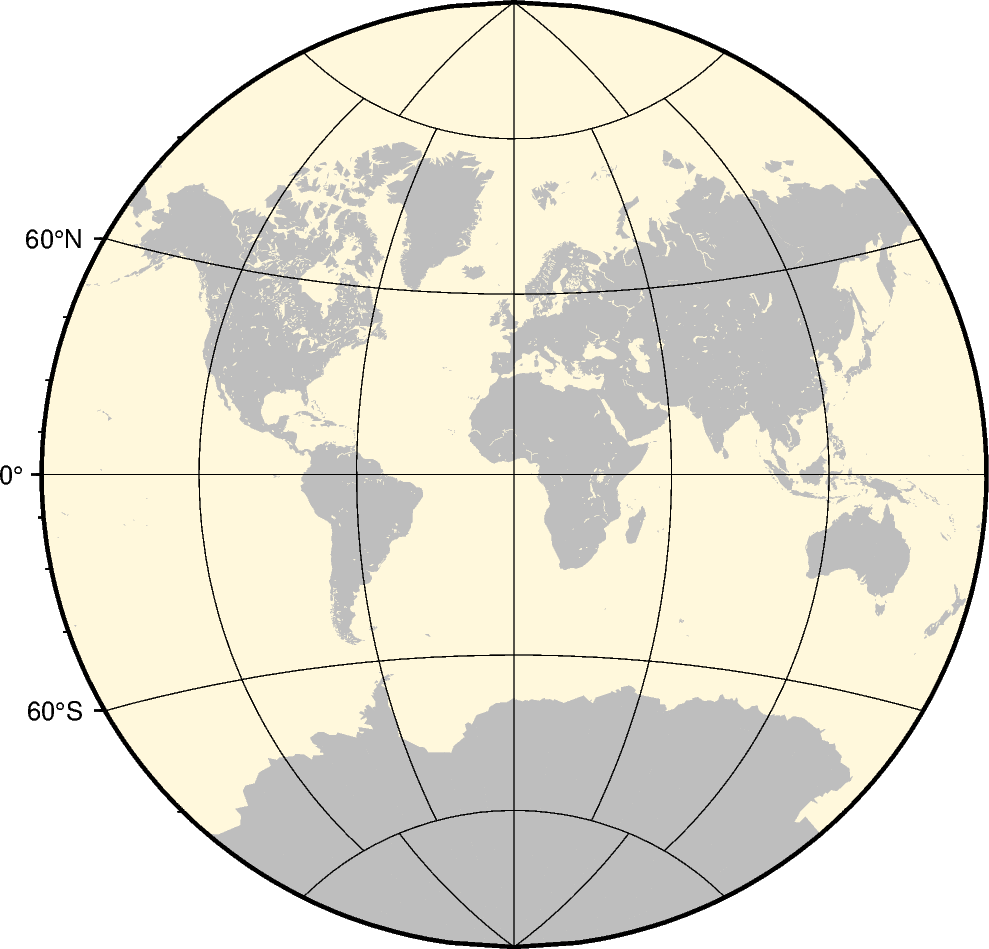

misc van der grinten
import pygmt

fig = pygmt.Figure()
# Use region "d" to specify global region (-180/180/-90/90)
fig.coast(region="d", projection="V12c", land="gray", water="cornsilk", frame="afg")
fig.show()

Total running time of the script: (0 minutes 0.240 seconds)
