Van der Grinten

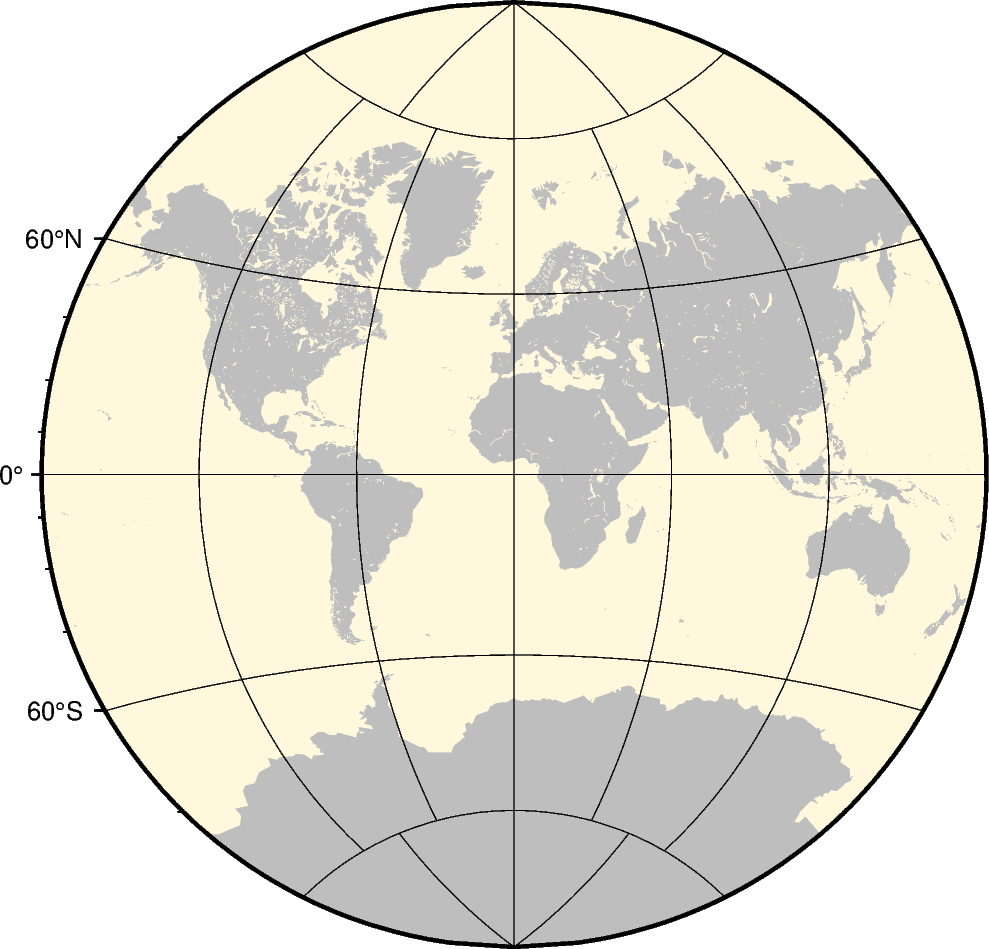

The Van der Grinten projection, presented by Alphons J. van der Grinten in 1904, is neither equal-area nor conformal. Central meridian and Equator are straight lines; other meridians are arcs of circles. The scale is true along the Equator only. Its main use is to show the entire world enclosed in a circle.
v[lon0/]scale or V[lon0/]width
The projection is set with v or V. The central meridian is set with the optional lon0, and the figure size is set with scale or width.
![misc van der grinten](../../_images/sphx_glr_misc_van_der_grinten_001.png)
import pygmt
fig = pygmt.Figure()
# Use region "d" to specify global region (-180/180/-90/90)
fig.coast(region="d", projection="V12c", land="gray", water="cornsilk", frame="afg")
fig.show()
Total running time of the script: (0 minutes 0.241 seconds)
