Hammer
The equal-area Hammer projection, first presented by the German mathematician Ernst von Hammer in 1892, is also known as Hammer-Aitoff (the Aitoff projection looks similar, but is not equal-area). The border is an ellipse, equator and central meridian are straight lines, while other parallels and meridians are complex curves.
h[lon0/]scale or H[lon0/]width
The projection is set with h or H. The central meridian is set with the optional lon0, and the figure size is set with scale or width.

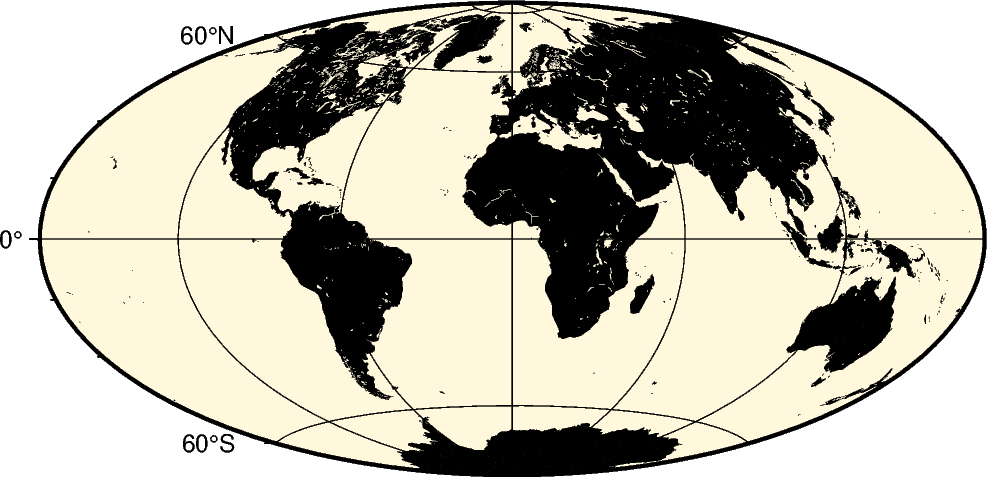

![misc hammer](../../_images/sphx_glr_misc_hammer_001.png)
import pygmt
fig = pygmt.Figure()
# Use region "d" to specify global region (-180/180/-90/90)
fig.coast(region="d", projection="H12c", land="black", water="cornsilk", frame="afg")
fig.show()
Total running time of the script: (0 minutes 0.208 seconds)
