Frames, ticks, titles, and labels

Setting frame, ticks, title, etc., of the plot is handled by the frame parameter that most plotting methods of the pygmt.Figure class contain.

import pygmt

Plot frame

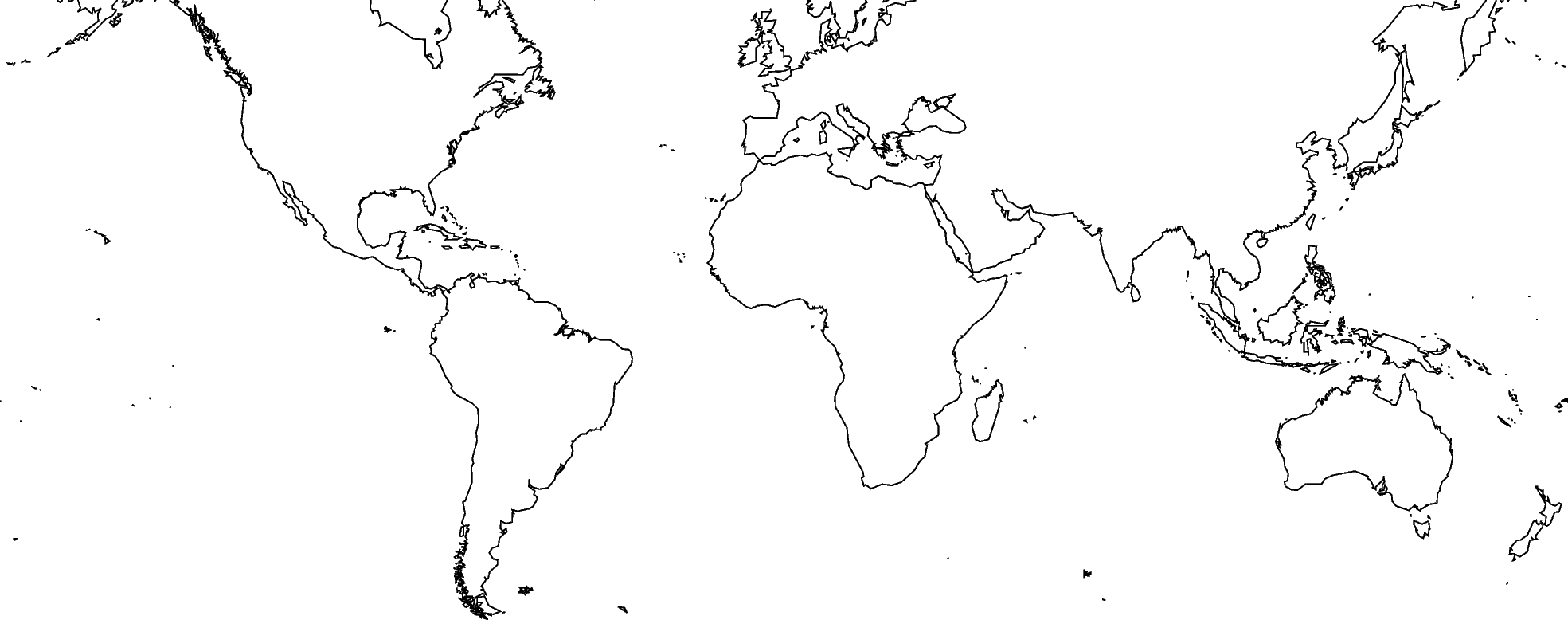

By default, PyGMT does not add a frame to your plot. For example, we can plot the coastlines of the world with a Mercator projection:

fig = pygmt.Figure()
fig.coast(shorelines="1/0.5p", region=[-180, 180, -60, 60], projection="M25c")
fig.show()
frames

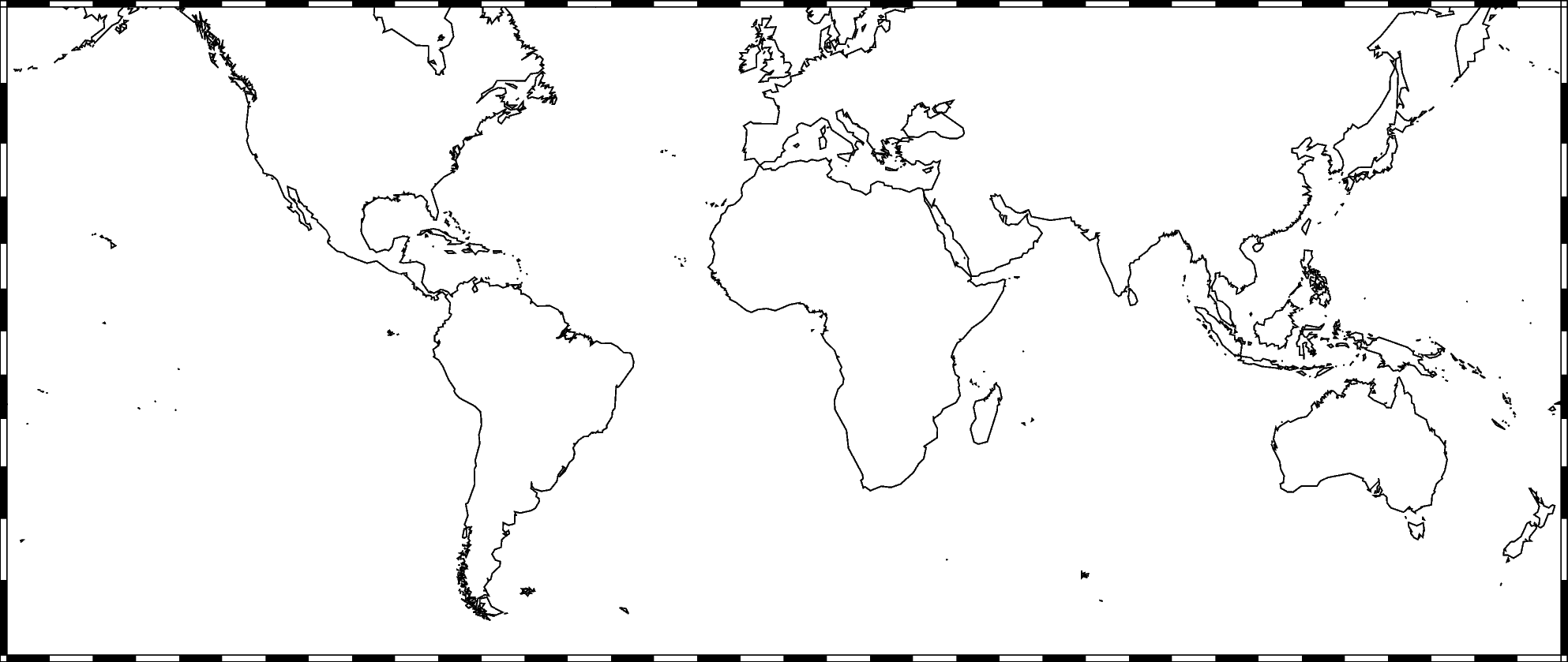

To add the default GMT frame style to the plot, use frame="f" in pygmt.Figure.basemap or another plotting method (which has the frame parameter, with exception of pygmt.Figure.colorbar):

fig = pygmt.Figure()
fig.coast(shorelines="1/0.5p", region=[-180, 180, -60, 60], projection="M25c")
fig.basemap(frame="f")
fig.show()
frames

Ticks and grid lines

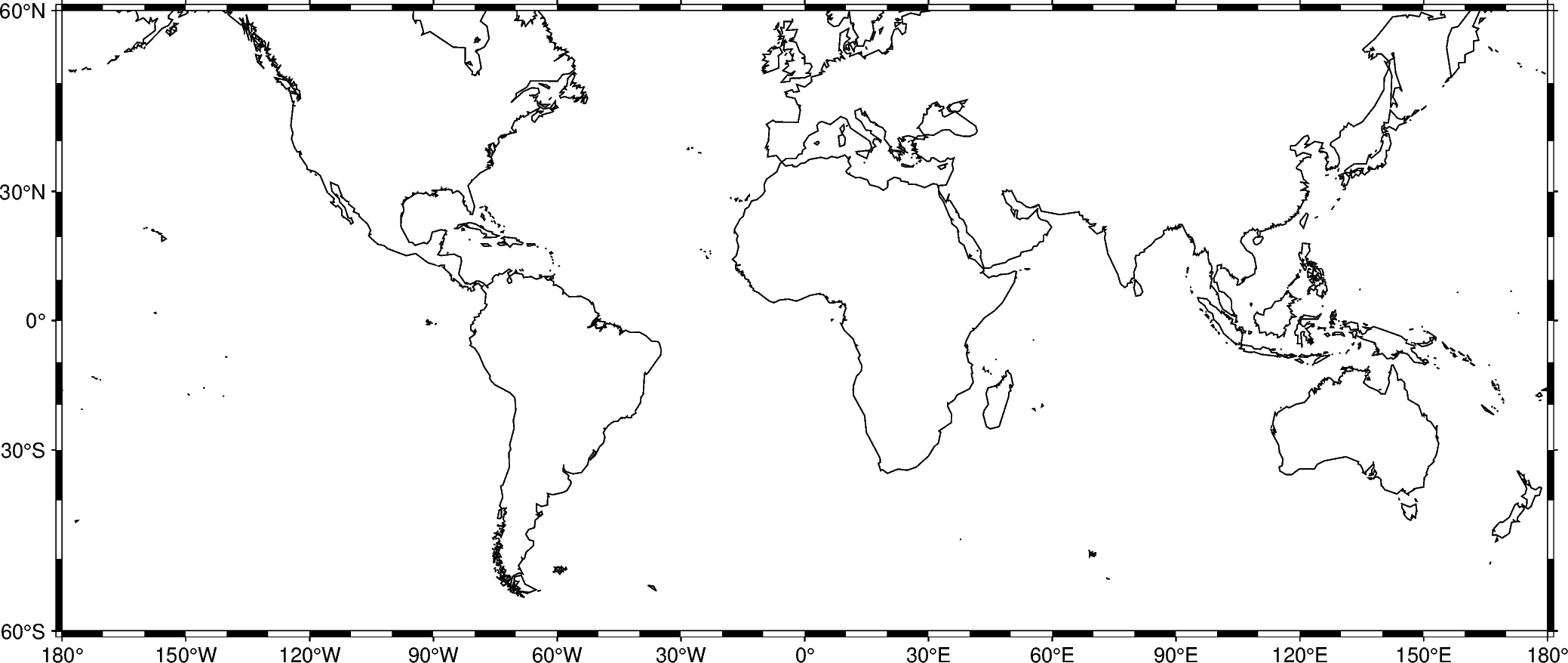

The automatic frame (frame=True or frame="af") adds the default GMT frame style and automatically determines tick labels from the plot region. In GMT the tick labels are called annotations.

fig = pygmt.Figure()
fig.coast(shorelines="1/0.5p", region=[-180, 180, -60, 60], projection="M25c")
fig.basemap(frame="af")
fig.show()
frames

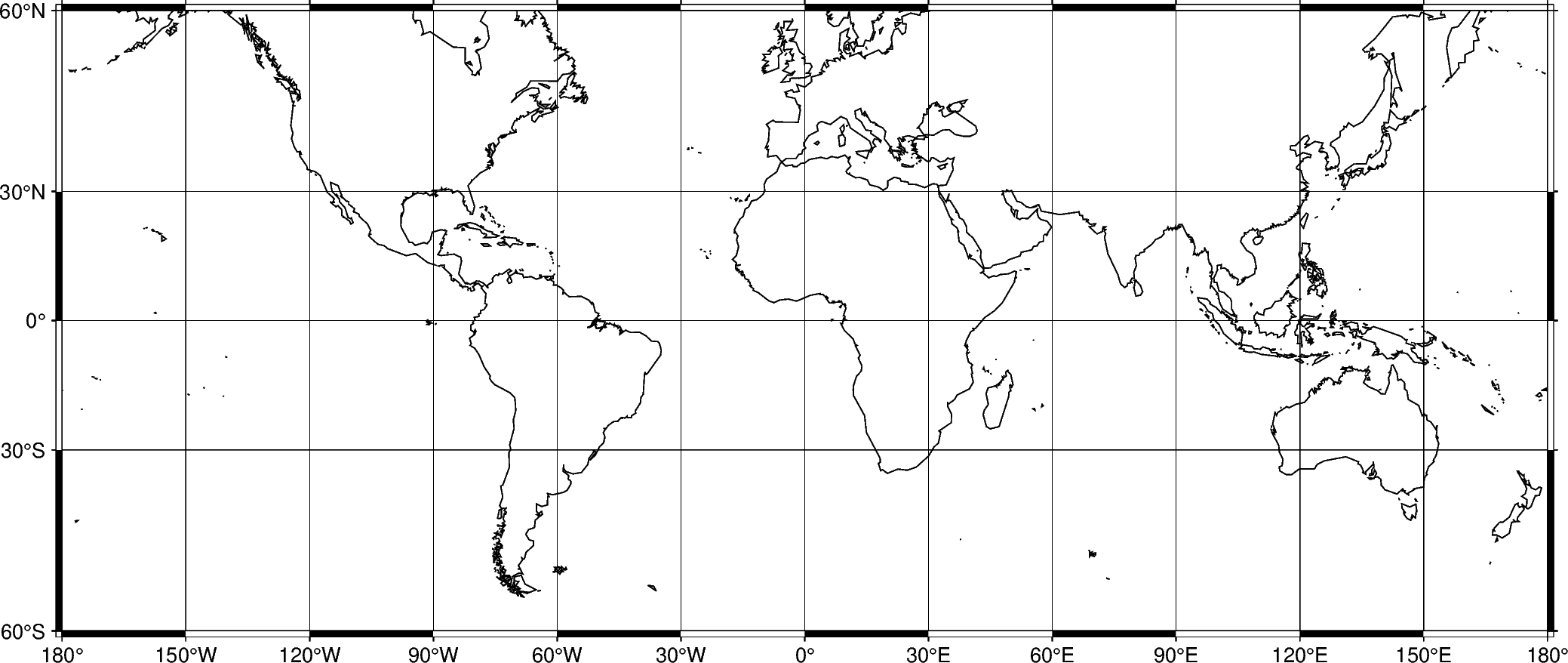

Add automatic grid lines to the plot by passing g through the frame parameter:

fig = pygmt.Figure()
fig.coast(shorelines="1/0.5p", region=[-180, 180, -60, 60], projection="M25c")
fig.basemap(frame="ag")
fig.show()
frames

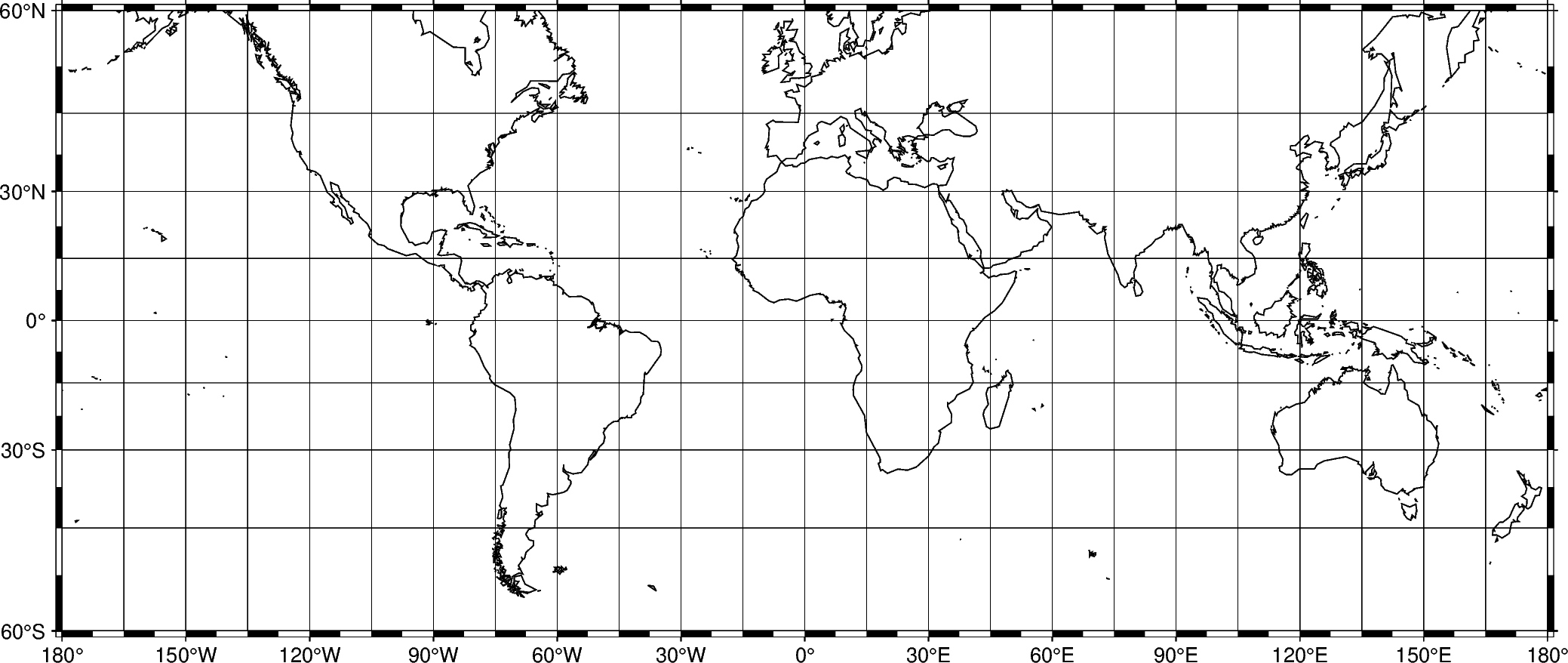

To adjust the step widths of annotations, frame, and grid lines we can add the desired step widths after a, f, or g. In the example below, the step widths are set to 30°, 7.5°, and 15°, respectively.

fig = pygmt.Figure()
fig.coast(shorelines="1/0.5p", region=[-180, 180, -60, 60], projection="M25c")
fig.basemap(frame="a30f7.5g15")
fig.show()
frames

Title

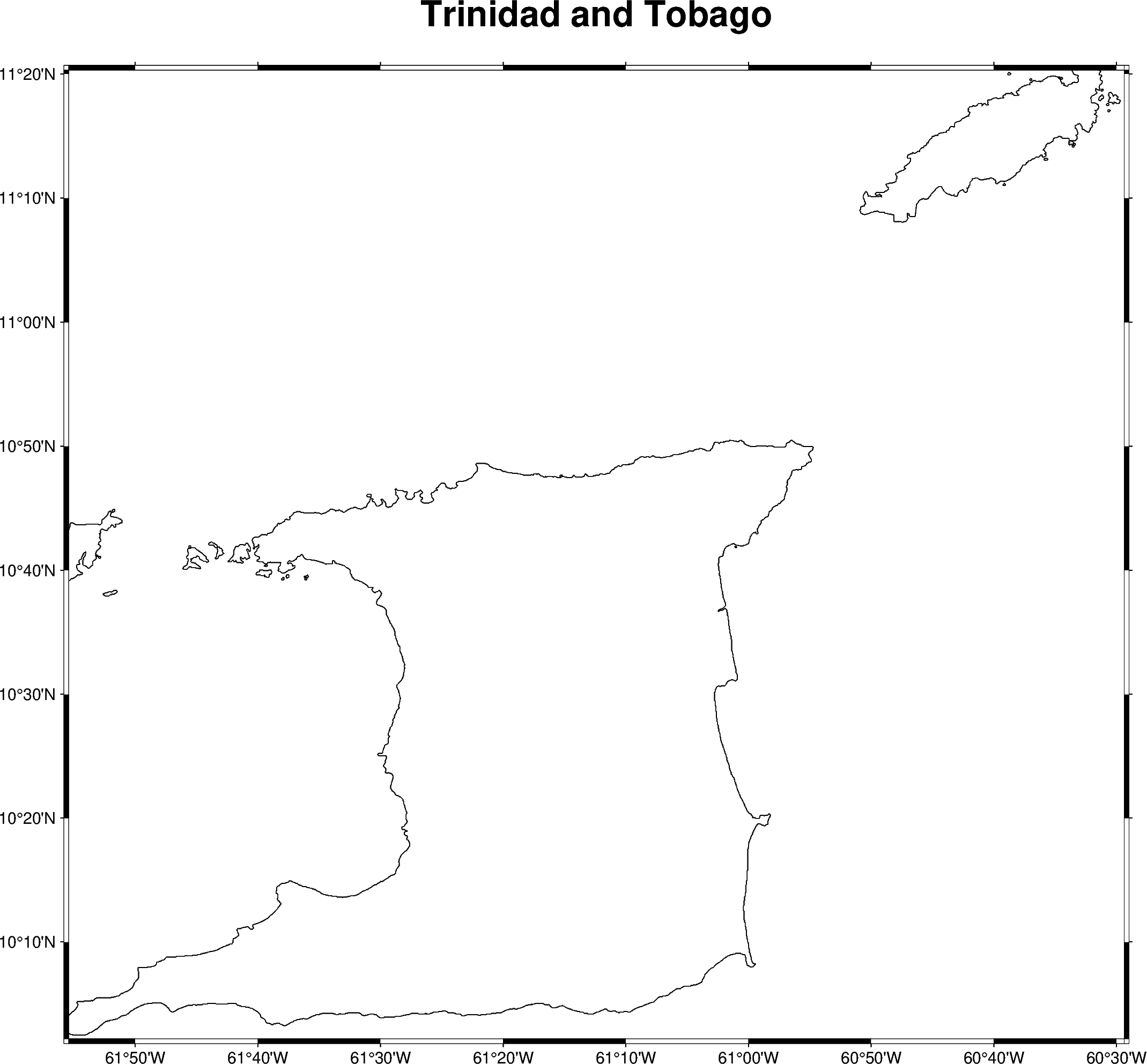

The figure title can be set by passing +ttitle to the frame parameter of pygmt.Figure.basemap. Passing multiple arguments to frame can be done by using a list, as show in the example below.

fig = pygmt.Figure()
# region="TT" specifies Trinidad and Tobago using the ISO country code
fig.coast(shorelines="1/0.5p", region="TT", projection="M25c")
fig.basemap(frame=["a", "+tTrinidad and Tobago"])
fig.show()
frames

Axis labels

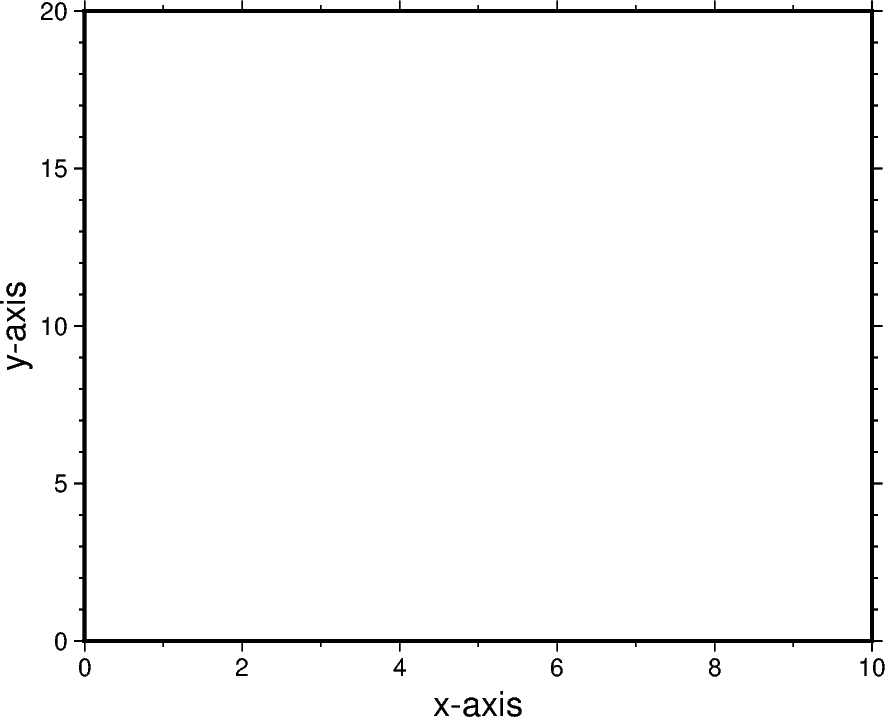

Axis labels, in GMT simply called labels, can be set by passing x+llabel (or starting with y if labeling the y-axis) to the frame parameter of pygmt.Figure.basemap. The map boundaries (or plot axes) are named as West/west/left (W, w, l), South/south/bottom (S, s, b), North/north/top (N, n, t), and East/east/right (E, e, r) sides of a figure. If an upper-case letter (W, S, N, E) is passed, the axis is plotted with tick marks and annotations. The lower-case version (w, s, n, e) plots the axis only with tick marks. To only plot the axis pass l, b, t, r. By default (frame=True or frame="af"), the West and the South axes are plotted with both tick marks and annotations.

The example below uses a Cartesian projection, as GMT does not allow labels to be set for geographic maps.

fig = pygmt.Figure()
fig.basemap(
    region=[0, 10, 0, 20],
    projection="X10c/8c",
    # Plot axis with tick marks, annotations, and labels on the
    # West and South axes
    # Plot axis with tick marks on the north and east axes
    frame=["WSne", "xaf+lx-axis", "yaf+ly-axis"],
)
fig.show()
frames

Total running time of the script: ( 0 minutes 4.741 seconds)
