Plotting Earth relief

Plotting a map of Earth relief can use the data accessed by the pygmt.datasets.load_earth_relief function. The data can then be plotted using the pygmt.Figure.grdimage method.

import pygmt

Load sample Earth relief data for the entire globe at a resolution of 1 arc-degree. The other available resolutions are show at https://www.generic-mapping-tools.org/remote-datasets/earth-relief.html.

grid = pygmt.datasets.load_earth_relief(resolution="01d")

Create a plot

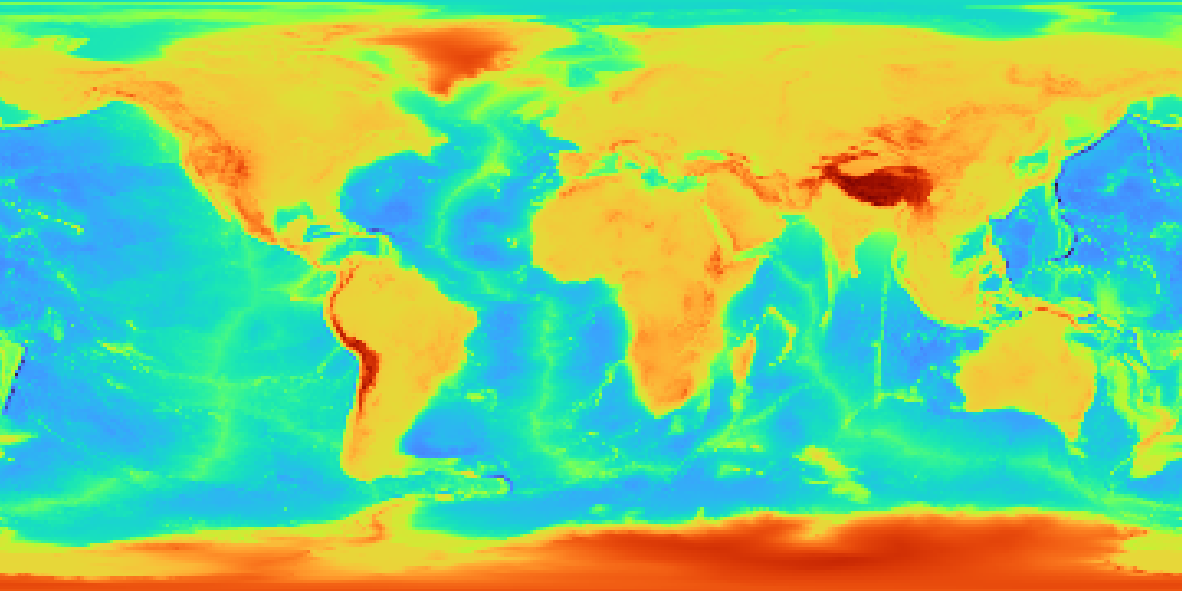

The pygmt.Figure.grdimage method takes the grid input to create a figure. It creates and applies a color palette to the figure based upon the z-values of the data. By default, it plots the map with the turbo CPT, an equidistant cylindrical projection, and with no frame.

fig = pygmt.Figure()
fig.grdimage(grid=grid)
fig.show()

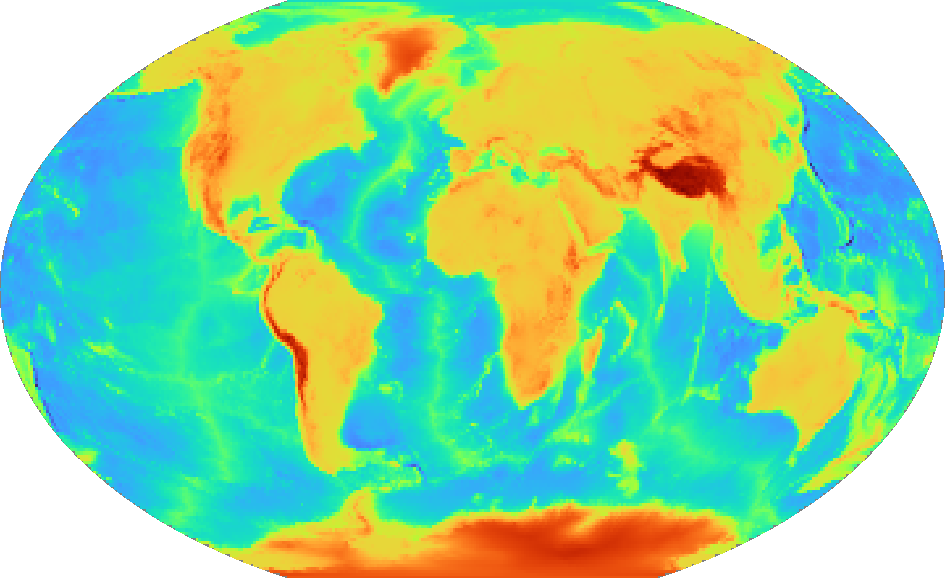

pygmt.Figure.grdimage can take the optional parameter projection for the map. In the example below, the projection is set as R12c for 12 centimeter figure with a Winkel Tripel projection. For a list of available projections, see https://docs.generic-mapping-tools.org/latest/cookbook/map-projections.html.

fig = pygmt.Figure()
fig.grdimage(grid=grid, projection="R12c")
fig.show()

Set a color map

pygmt.Figure.grdimage takes the cmap parameter to set the CPT of the figure. Examples of common CPTs for Earth relief are shown below. A full list of CPTs can be found at https://docs.generic-mapping-tools.org/latest/cookbook/cpts.html.

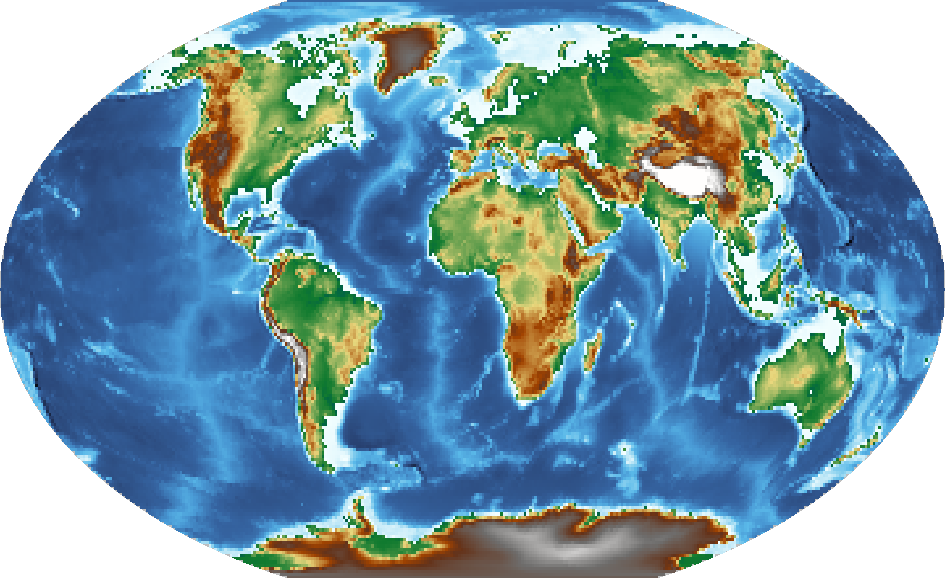

Using the geo CPT:

fig = pygmt.Figure()
fig.grdimage(grid=grid, projection="R12c", cmap="geo")
fig.show()

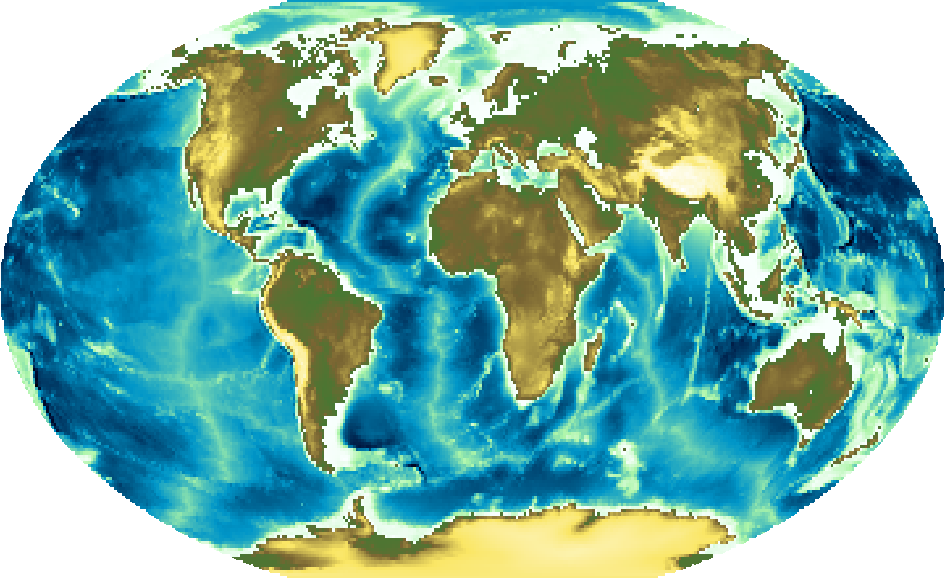

Using the relief CPT:

fig = pygmt.Figure()
fig.grdimage(grid=grid, projection="R12c", cmap="relief")
fig.show()

Add a color bar

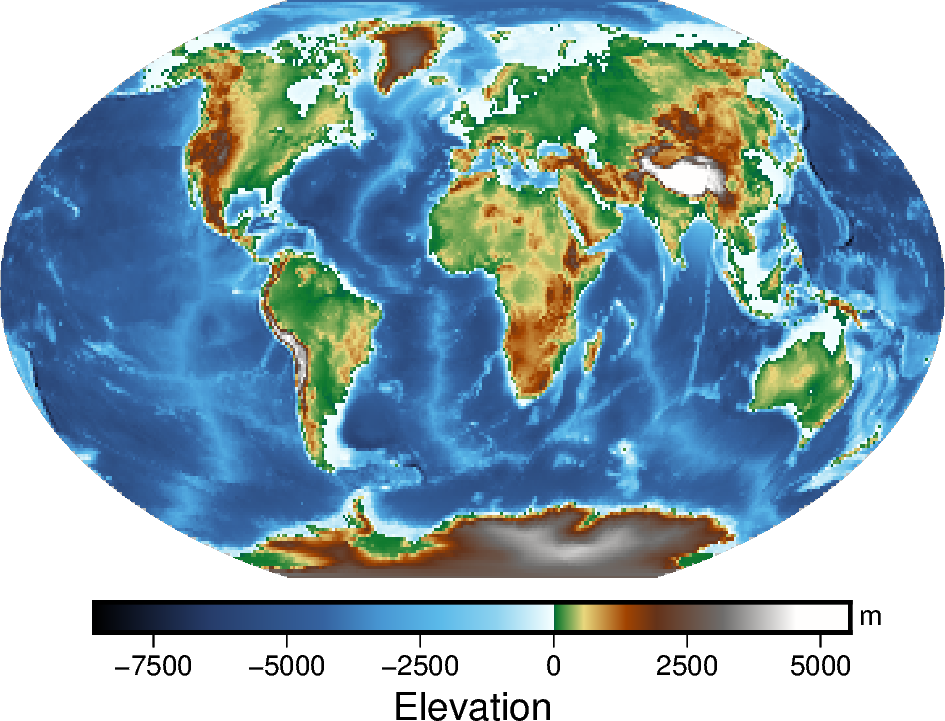

The pygmt.Figure.colorbar method displays the CPT and the associated Z-values of the figure, and by default uses the same CPT set by the cmap parameter for pygmt.Figure.grdimage. The frame parameter for pygmt.Figure.colorbar can be used to set the axis intervals and labels. A list is used to pass multiple arguments to frame. In the example below, a2500 sets the axis interval to 2,500, x+lElevation sets the x-axis label, and y+lm sets the y-axis label.

fig = pygmt.Figure()
fig.grdimage(grid=grid, projection="R12c", cmap="geo")
fig.colorbar(frame=["a2500", "x+lElevation", "y+lm"])
fig.show()

Create a region map

In addition to providing global data, the region parameter for pygmt.datasets.load_earth_relief can be used to provide data for a specific area. The region parameter is required for resolutions at 5 arc-minutes or higher, and accepts a list (as in the example below) or a string. The geographic ranges are passed as xmin/xmax/ymin/ymax.

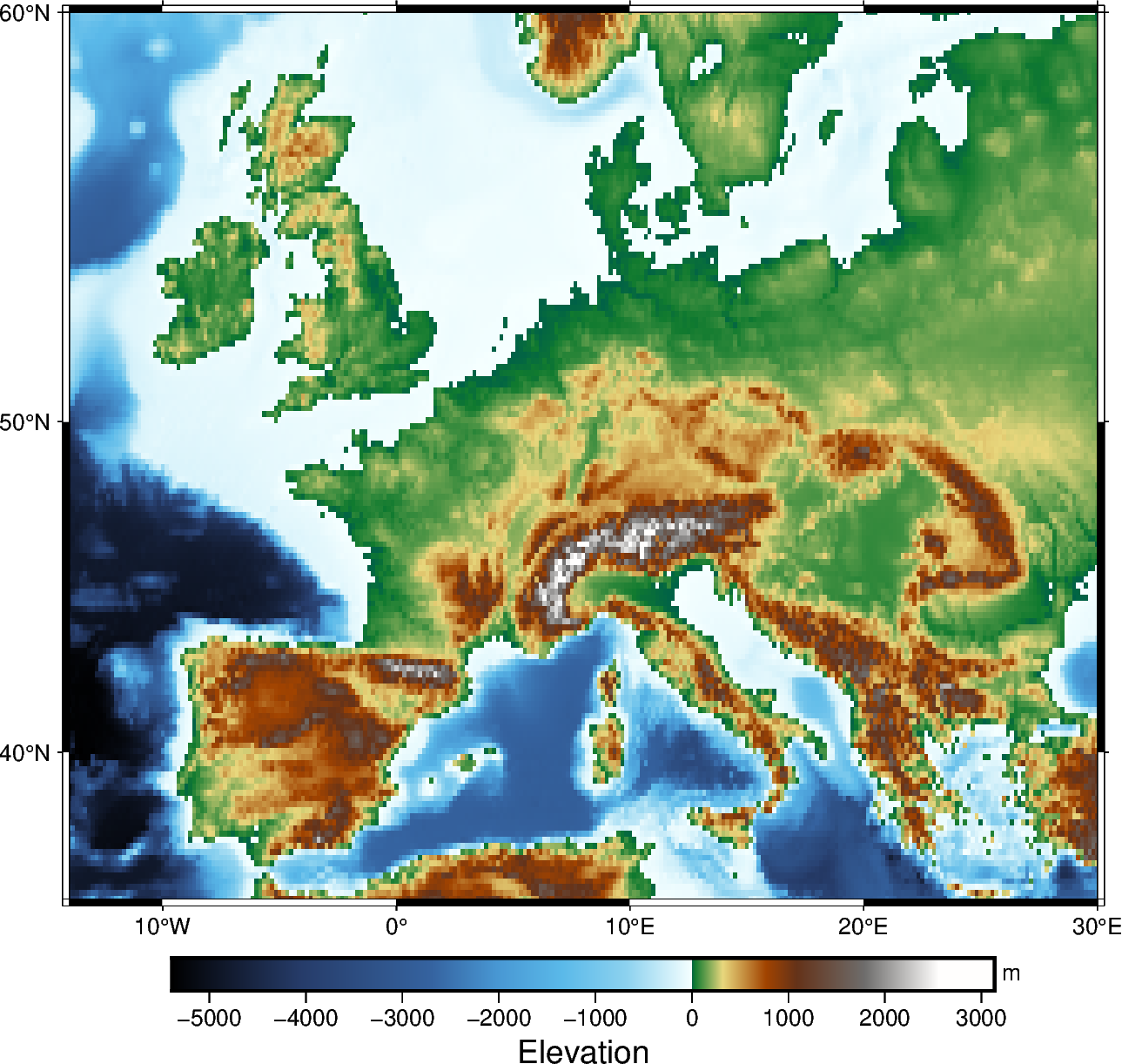

The example below uses data with a 10 arc-minutes resolution, and plots it on a 15 centimeters figure with a Mercator projection and a CPT set to geo. frame="a" is used to add a frame to the figure.

grid = pygmt.datasets.load_earth_relief(resolution="10m", region=[-14, 30, 35, 60])
fig = pygmt.Figure()
fig.grdimage(grid=grid, projection="M15c", frame="a", cmap="geo")
fig.colorbar(frame=["a1000", "x+lElevation", "y+lm"])
fig.show()
