Lambert Conic Conformal Projection

This conic projection was designed by the Alsatian mathematician Johann Heinrich Lambert (1772) and has been used extensively for mapping of regions with predominantly east-west orientation, just like the Albers projection. Unlike the Albers projection, Lambert’s conformal projection is not equal-area. The parallels are arcs of circles with a common origin, and meridians are the equally spaced radii of these circles. As with Albers projection, it is only the two standard parallels that are distortion-free.

llon0/lat0/lat1/lat2/scale or Llon0/lat0/lat1/lat2/width

The projection is set with l or L. The projection center is set by lon0/lat0 and two standard parallels for the map are set with lat1/lat2. The figure size is set with scale or width.

conic lambert

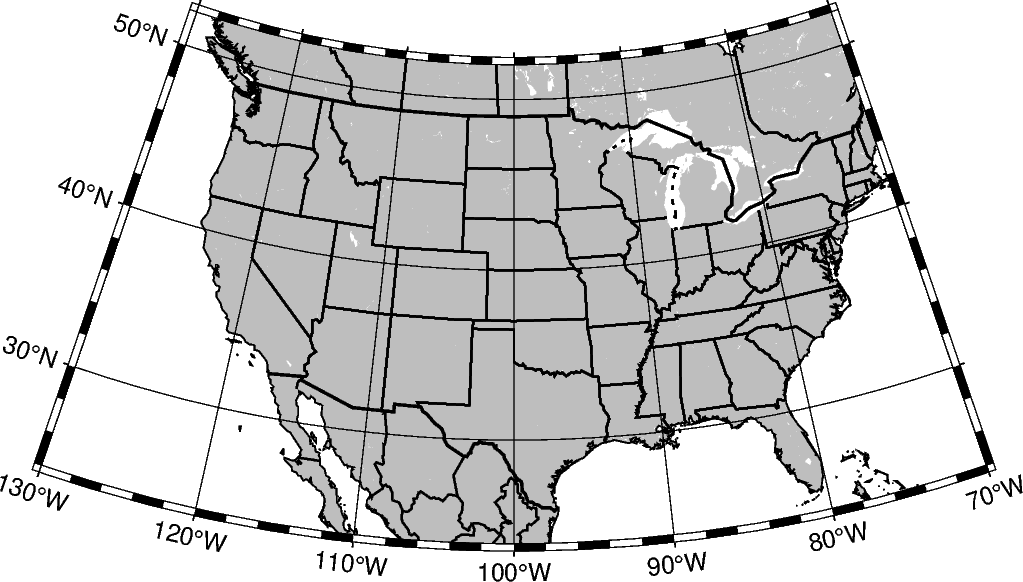

import pygmt

fig = pygmt.Figure()
fig.coast(
    shorelines="1/0.5p",
    region=[-130, -70, 24, 52],
    projection="L-100/35/33/45/12c",
    land="gray",
    borders=["1/thick,black", "2/thin,black"],
    frame="afg",
)

fig.show()

Total running time of the script: ( 0 minutes 0.544 seconds)
