Scatter plot with histograms

To create a scatter plot with histograms at the sides of the plot one can use pygmt.Figure.plot in combination with pygmt.Figure.histogram. The positions of the histograms are plotted by offseting them from the main scatter plot figure using pygmt.Figure.shift_origin.

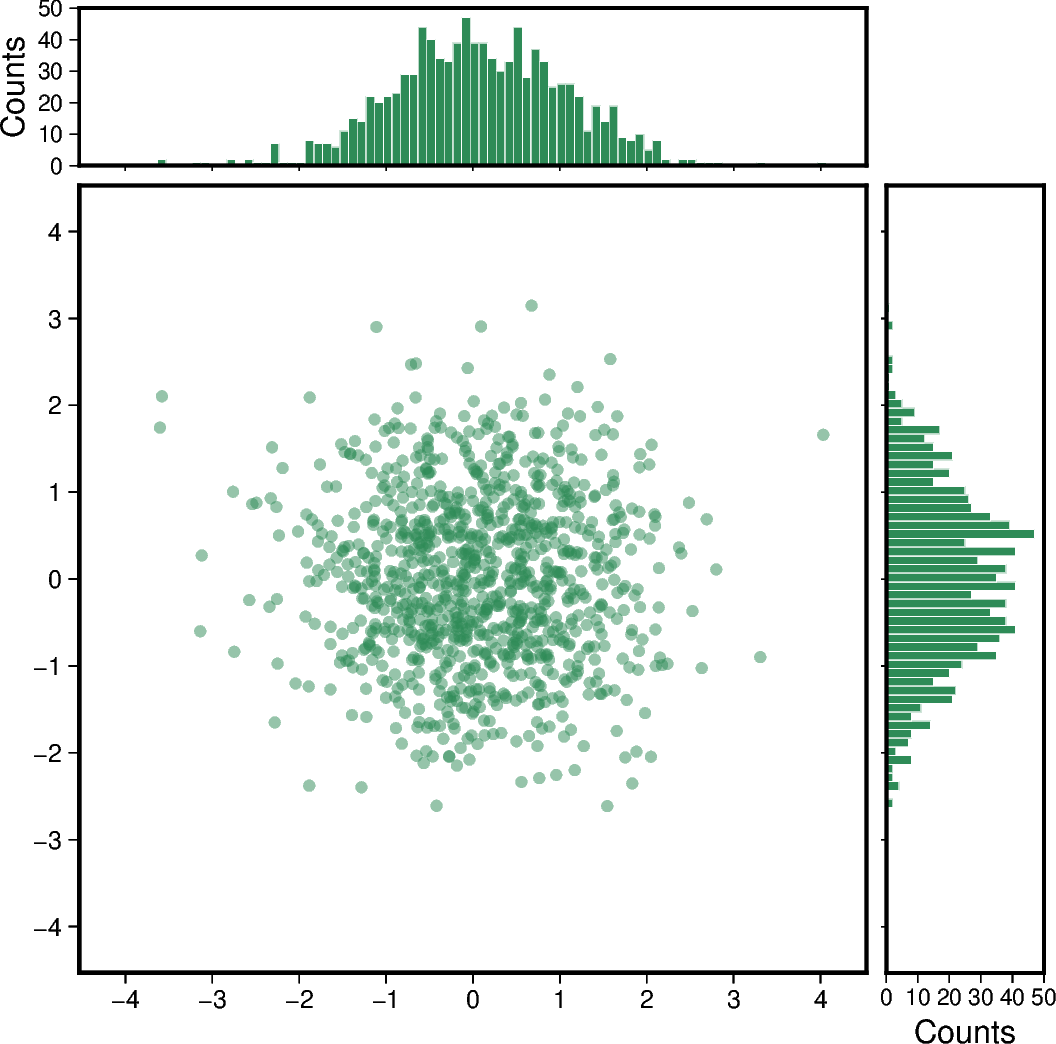

scatter and histograms
import numpy as np
import pygmt

np.random.seed(19680801)

# Generate random data from a standard normal distribution centered on 0
x = np.random.randn(1000)
y = np.random.randn(1000)

# Get axis limits
xymax = max(np.max(np.abs(x)), np.max(np.abs(y)))

fig = pygmt.Figure()
fig.basemap(
    region=[-xymax - 0.5, xymax + 0.5, -xymax - 0.5, xymax + 0.5],
    projection="X10c/10c",
    frame=["WSrt", "a1"],
)

fillcol = "seagreen"

# Plot data points as circles with a diameter of 0.15 centimeters
fig.plot(x=x, y=y, style="c0.15c", fill=fillcol, transparency=50)

# Shift the plot origin and add top margin histogram
fig.shift_origin(yshift="10.25c")

fig.histogram(
    projection="X10c/2c",
    frame=["Wsrt", "xf1", "y+lCounts"],
    # Give the same value for ymin and ymax to have ymin and ymax
    # calculated automatically
    region=[-xymax - 0.5, xymax + 0.5, 0, 0],
    data=x,
    fill=fillcol,
    pen="0.1p,white",
    histtype=0,
    series=0.1,
)

# Shift the plot origin and add right margin histogram
fig.shift_origin(yshift="-10.25c", xshift="10.25c")

fig.histogram(
    horizontal=True,
    projection="X2c/10c",
    # Note that the y-axis annotation "Counts" is shown in x-axis direction
    # due to the rotation caused by horizontal=True
    frame=["wSrt", "xf1", "y+lCounts"],
    region=[-xymax - 0.5, xymax + 0.5, 0, 0],
    data=y,
    fill=fillcol,
    pen="0.1p,white",
    histtype=0,
    series=0.1,
)

fig.show()

Total running time of the script: ( 0 minutes 1.120 seconds)
