Cartesian linear
Xwidth/[height]: Give the width of the figure and the optional height.

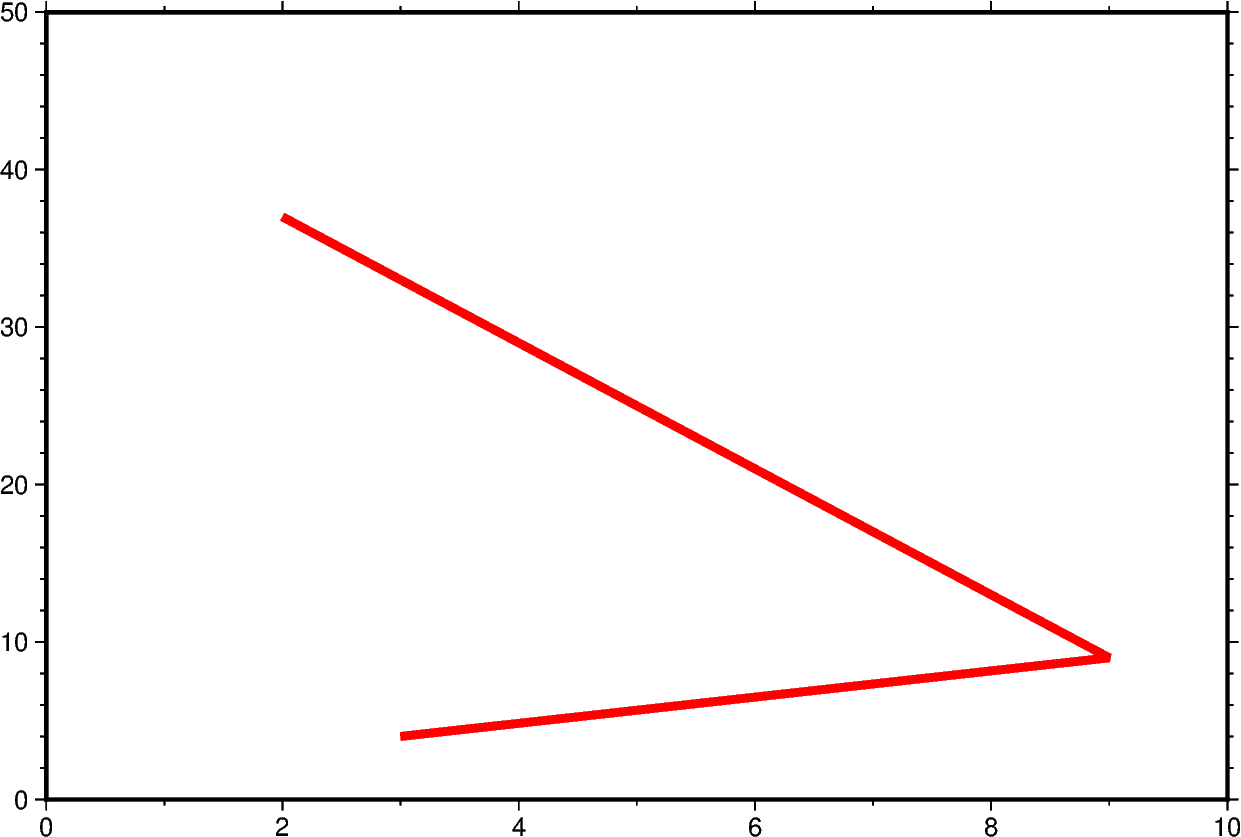

![cartesian linear](../../_images/sphx_glr_cartesian_linear_001.png)
Out:
<IPython.core.display.Image object>
import pygmt
fig = pygmt.Figure()
fig.plot(
# The x and y parameters determine the coordinates of lines
x=[3, 9, 2],
y=[4, 9, 37],
pen="3p,red",
# ``region`` sets the x and y ranges or the Cartesian figure.
region=[0, 10, 0, 50],
projection="X15c/10c",
# ``WSne`` is passed to ``frame`` to put axis labels only on the left and
# bottom axes.
frame=["af", "WSne"],
)
fig.show()
Total running time of the script: ( 0 minutes 0.980 seconds)
