Creating a 3D perspective image¶
Create 3-D perspective image or surface mesh from a grid
using pygmt.Figure.grdview
.
Note
This tutorial assumes the use of a Python notebook, such as IPython or Jupyter Notebook.
To see the figures while using a Python script instead, use
fig.show(method="external)
to display the figure in the default PDF viewer.
To save the figure, use fig.savefig("figname.pdf")
where "figname.pdf"
is the desired name and file extension for the saved figure.
import pygmt
# Load sample earth relief data
grid = pygmt.datasets.load_earth_relief(resolution="10m", region=[-108, -103, 35, 40])

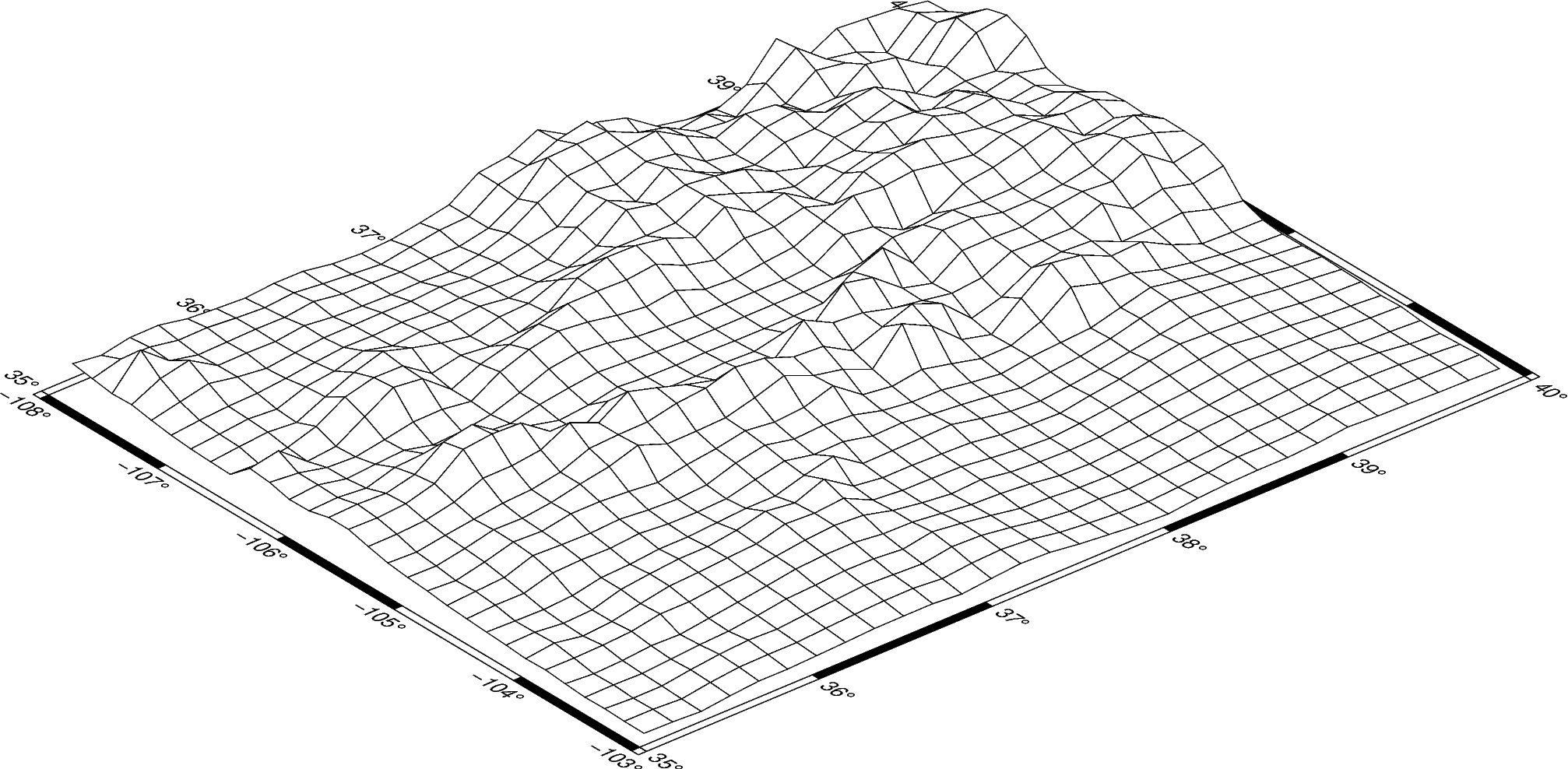

The pygmt.Figure.grdview
method takes the grid
input.
The perspective
argument changes the azimuth and elevation of the viewpoint; the
default is [180, 90], which is looking directly down on the figure and north is “up”.
The zsize
argument sets how tall the three-dimensional portion appears.
The default grid surface type is mesh plot.
fig = pygmt.Figure()
fig.grdview(
grid=grid,
# Sets the view azimuth as 130 degrees, and the view elevation as 30 degrees
perspective=[130, 30],
# Sets the x- and y-axis labels, and annotates the west, south, and east axes
frame=["xa", "ya", "WSnE"],
# Sets a Mercator projection on a 15-centimeter figure
projection="M15c",
# Sets the height of the three-dimensional relief at 1.5 centimeters
zsize="1.5c",
)
fig.show()
![3d perspective image](../_images/sphx_glr_3d-perspective-image_001.png)
Out:
<IPython.core.display.Image object>

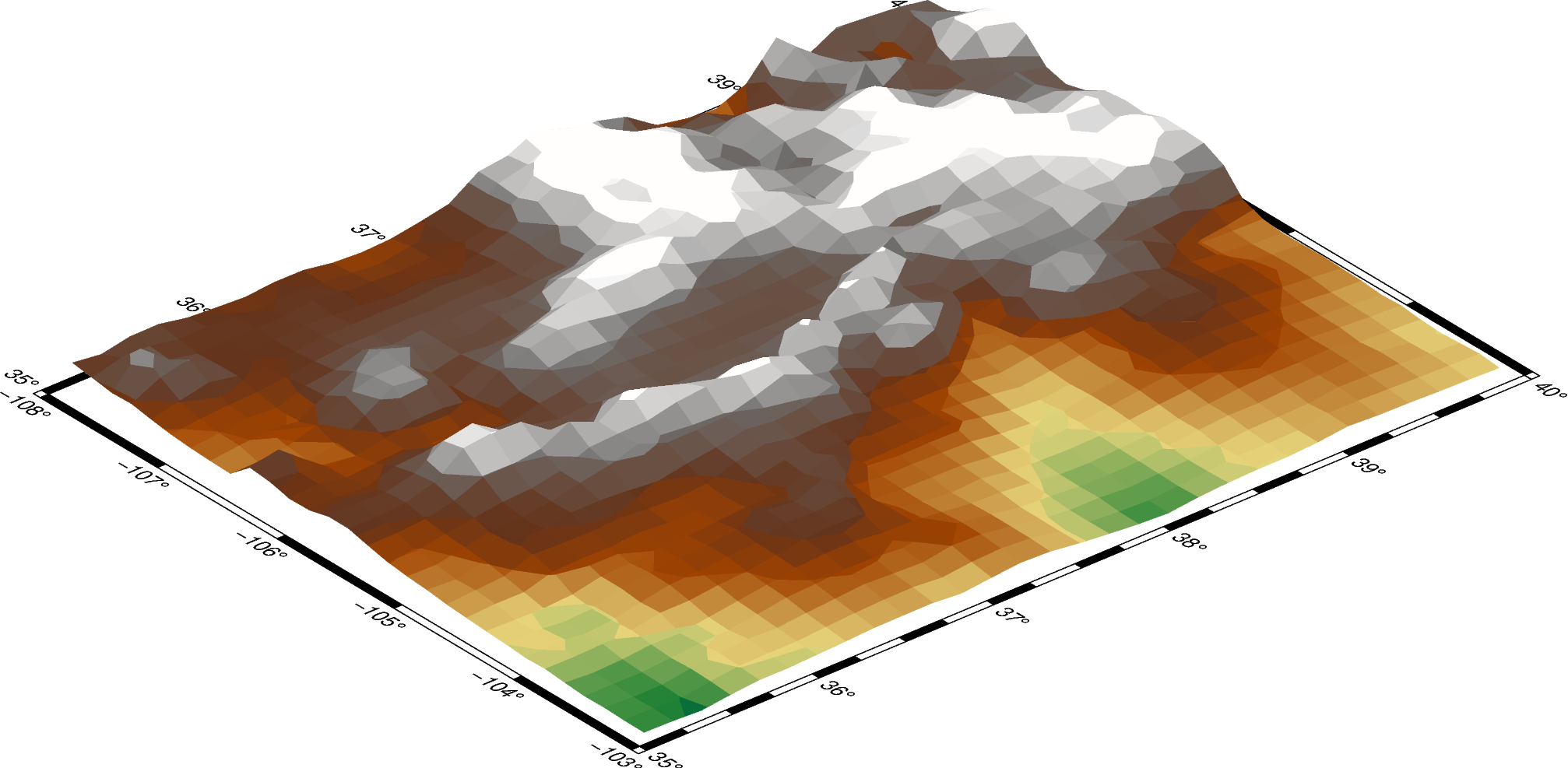

The grid surface type can be set with the surftype
parameter.
The default CPT is turbo and can be customized with the cmap
parameter.
fig = pygmt.Figure()
fig.grdview(
grid=grid,
perspective=[130, 30],
frame=["xa", "yaf", "WSnE"],
projection="M15c",
zsize="1.5c",
# Set the surftype to "surface"
surftype="s",
# Set the CPT to "geo"
cmap="geo",
)
fig.show()
![3d perspective image](../_images/sphx_glr_3d-perspective-image_002.png)
Out:
<IPython.core.display.Image object>

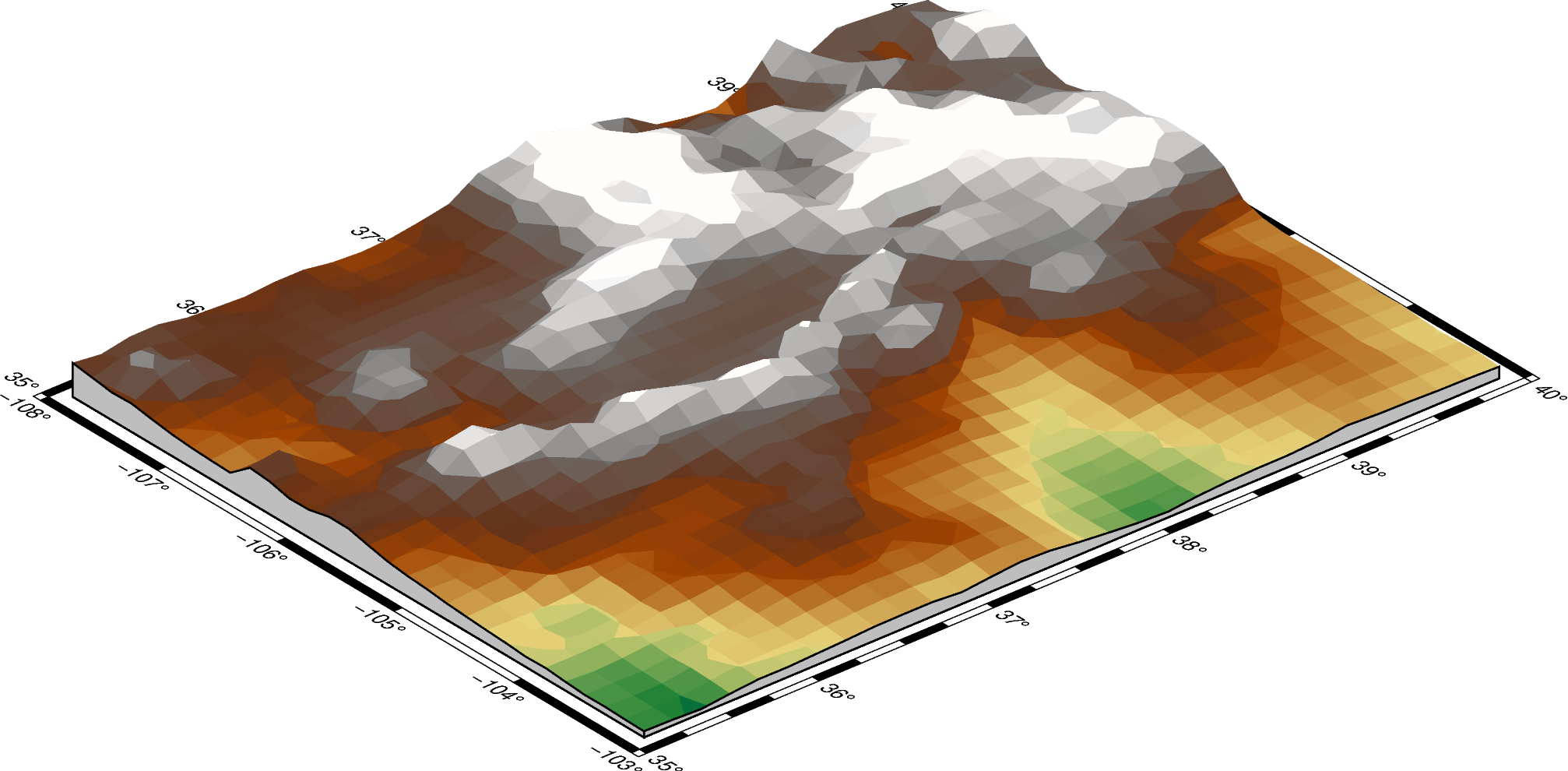

The plane
argument sets the elevation and color of a plane that provides a fill
below the surface relief.
fig = pygmt.Figure()
fig.grdview(
grid=grid,
perspective=[130, 30],
frame=["xa", "yaf", "WSnE"],
projection="M15c",
zsize="1.5c",
surftype="s",
cmap="geo",
# Set the plane elevation to 1,000 meters and make the fill "gray"
plane="1000+ggray",
)
fig.show()
![3d perspective image](../_images/sphx_glr_3d-perspective-image_003.png)
Out:
<IPython.core.display.Image object>

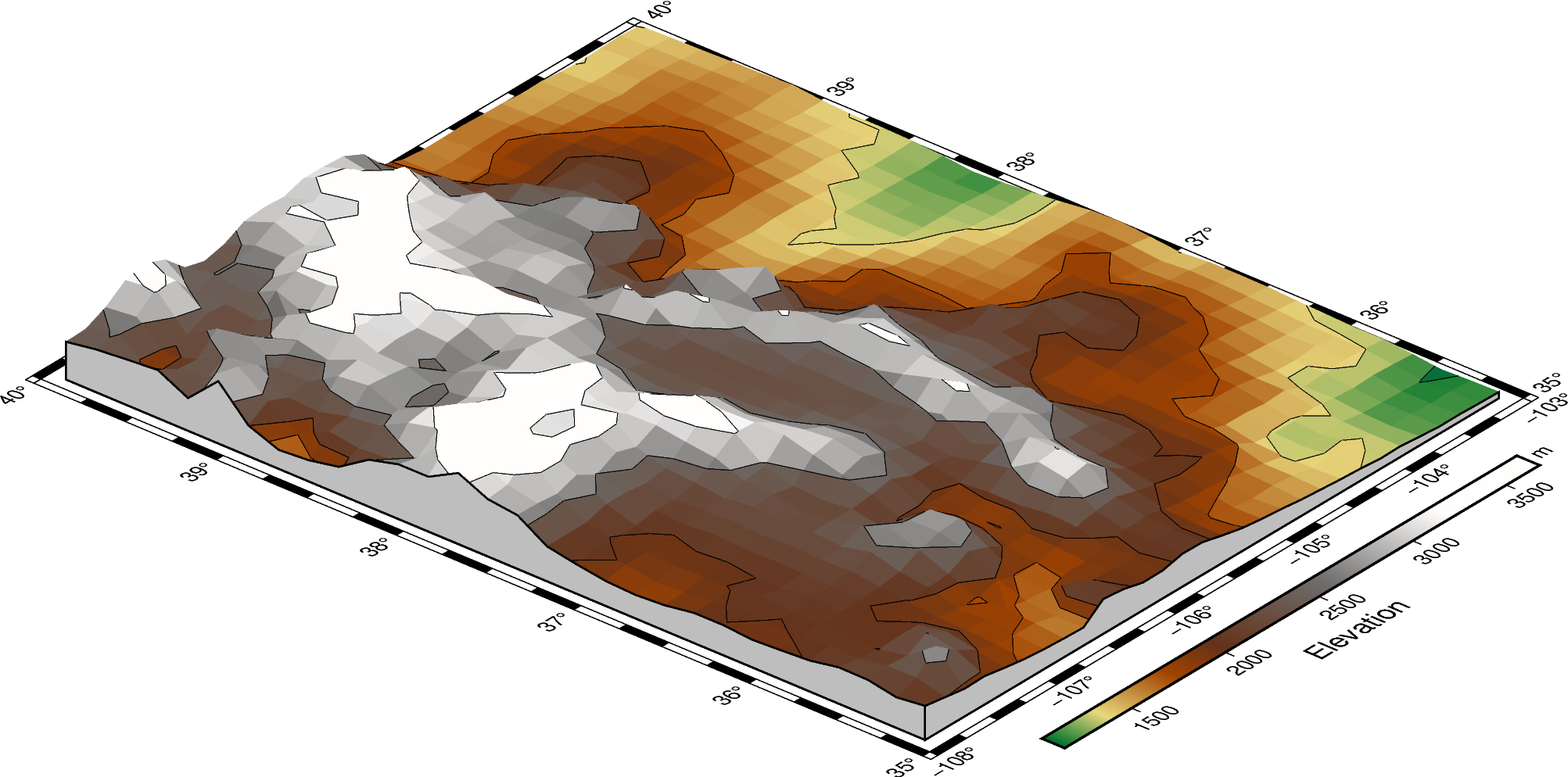

The perspective
azimuth can be changed to set the direction that is “up”
in the figure. The contourpen
parameter sets the pen used to draw contour lines
on the surface. pygmt.Figure.colorbar
can be used to add a color bar to the
figure. The cmap
parameter does not need to be passed again. To keep the color
bar’s alignment similar to the figure, use True
as the perspective
parameter.
fig = pygmt.Figure()
fig.grdview(
grid=grid,
# Set the azimuth to -130 (230) degrees and the elevation to 30 degrees
perspective=[-130, 30],
frame=["xaf", "yaf", "WSnE"],
projection="M15c",
zsize="1.5c",
surftype="s",
cmap="geo",
plane="1000+ggrey",
# Set the contour pen thickness to "0.1p"
contourpen="0.1p",
)
fig.colorbar(perspective=True, frame=["a500", "x+lElevation", "y+lm"])
fig.show()
![3d perspective image](../_images/sphx_glr_3d-perspective-image_004.png)
Out:
<IPython.core.display.Image object>
Total running time of the script: ( 0 minutes 6.443 seconds)
