Note
Go to the end to download the full example code
Images on figures
The pygmt.Figure.image
method can be used to read and place an image
file in many formats (e.g., png, jpg, eps, pdf) on a figure. We must specify
the filename via the imagefile
parameter or simply use the filename as
the first argument. You can also use a full URL pointing to your desired image.
The position
parameter allows us to set a reference point on the map for
the image.

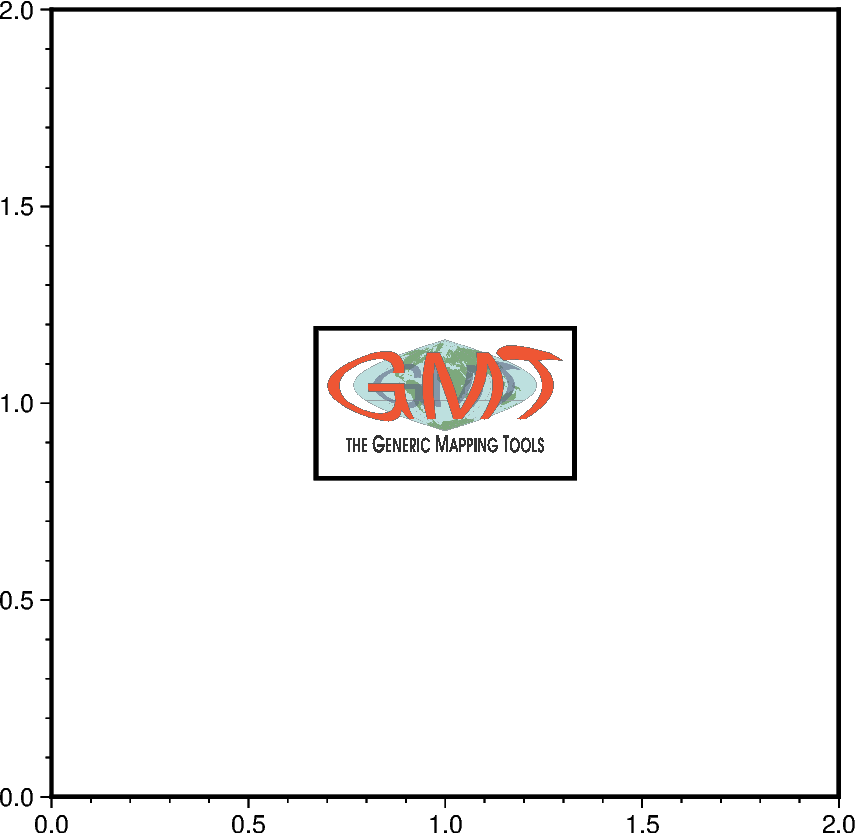

![image](../../_images/sphx_glr_image_001.png)
import os
import pygmt
fig = pygmt.Figure()
fig.basemap(region=[0, 2, 0, 2], projection="X10c", frame=True)
# place and center the GMT logo from the GMT website to the position 1/1
# on a basemap, scaled up to be 3 cm wide and draw a rectangular border
# around the image
fig.image(
imagefile="https://www.generic-mapping-tools.org/_static/gmt-logo.png",
position="g1/1+w3c+jCM",
box=True,
)
# clean up the downloaded image in the current directory
os.remove("gmt-logo.png")
fig.show()
Total running time of the script: (0 minutes 0.380 seconds)
